Details
About this unit

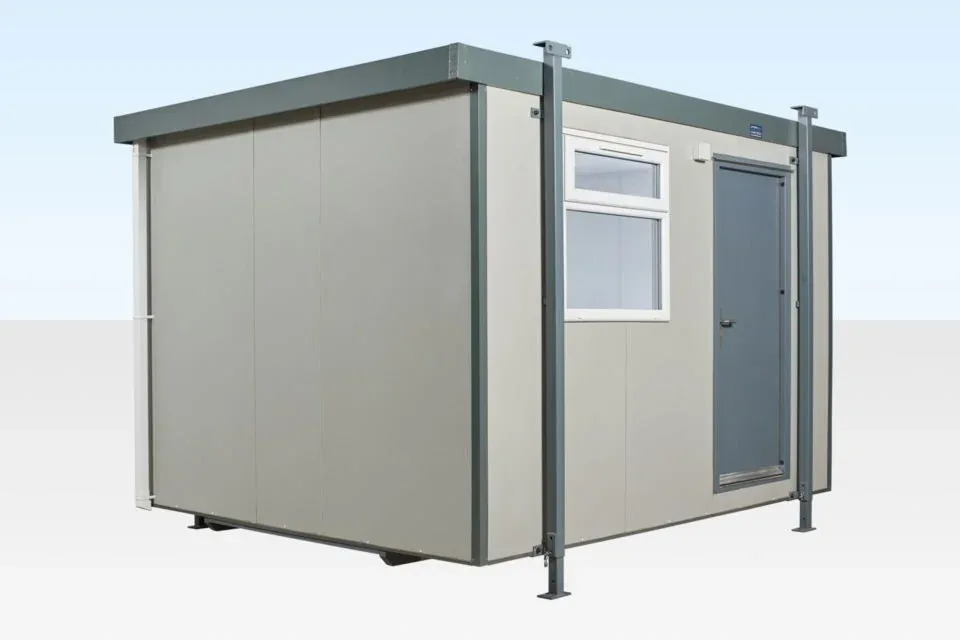

This 12ft x 10ft jackleg cabin plastisol is a compact portable site cabin available from stock for immediate delivery Australia-wide. The open plan interior suits single-occupant site offices, security booths, and welfare rooms on construction and infrastructure projects. Furthermore, the goosewing grey plastisol exterior finish resists corrosion and weathering better than standard painted steel. In addition, the jackleg frame lifts the cabin off the ground without a concrete base or level pad.
12ft x 10ft Jackleg Cabin Plastisol Specifications
Condition: One-Trip (New)— Never previously loaded
External Dimensions
| Dimension | Metres | Feet / Inches |
|---|---|---|
| Length | 3.66 m | 12′ 0″ |
| Width (excl. jacks) | 3.05 m | 10′ 0″ |
| Width (incl. jacks) | 3.18 m | 10′ 5″ |
| Height | 2.75 m | 9′ 0″ |
Internal Dimensions
| Dimension | Metres | Feet / Inches |
|---|---|---|
| Length | 3.46 m | 11′ 4″ |
| Width | 2.85 m | 9′ 4″ |
| Height | 2.30 m | 7′ 7″ |
Door Opening
| Dimension | Metres |
|---|---|
| Door Width | 0.80 m |
| Door Height | 1.99 m |
Standard Features
| Feature | Detail |
|---|---|
| Exterior Finish | Plastisol coated — Goosewing Grey |
| Floor | Vinyl — carpet available on request |
| Heating | Electric timed panel heater — fitted as standard |
| Windows | Fixed position — standard configuration |
| Door | Fixed position — standard configuration |
| Frame | Jackleg — no concrete base required |
| Optional | Fitted canteen available on request |
Why the 12ft x 10ft Jackleg Cabin Plastisol Works on Site
A 12ft x 10ft jackleg cabin plastisol gives you a weatherproof, heated workspace on any site without groundworks. The plastisol coated steel exterior holds its finish far longer than painted steel — no flaking, no rust patches, no repainting between projects. The electric timed panel heater keeps the interior at a working temperature without manual operation, which matters on early starts and overnight security shifts. Moreover, the open plan layout gives the occupant full flexibility to set up the space as a desk office, a security post, a tool store, or a break room. Therefore, it suits construction, infrastructure, events, and agricultural project sites equally well.
The fixed window and door positions keep the unit cost-effective and available from stock. Furthermore, carpet replaces the standard vinyl floor on request for permanent office installations. In addition, a fitted canteen is available for sites that need a combined office and welfare unit in a single 12ft footprint. As a result, you avoid the cost and footprint of two separate cabins.
Key Features
- Plastisol coated exterior — Goosewing Grey, corrosion resistant
- Jackleg frame — no concrete base or level pad required
- Electric timed panel heater — fitted as standard
- Vinyl floor — carpet available on request
- Open plan interior — flexible layout for any site use
- Fixed windows and door — stock availability, competitive price
- Optional fitted canteen — combined office and welfare in one unit
- In stock — available for immediate delivery Australia-wide
Browse Cabins for Sale
Additionally, 16ft and 20ft jackleg cabins are available for larger site office requirements. Browse our full range of cabins for sale to compare sizes and configurations in stock.
This cabin meets ISO 668 Series 1 freight container standards for structural specifications. Therefore, it lifts and transports on standard crane and forklift equipment.
Enquire About This 12ft x 10ft Jackleg Cabin Plastisol
In stock and available for immediate delivery Australia-wide. Reply with your postcode to receive a full delivered price.
