Details
About this unit

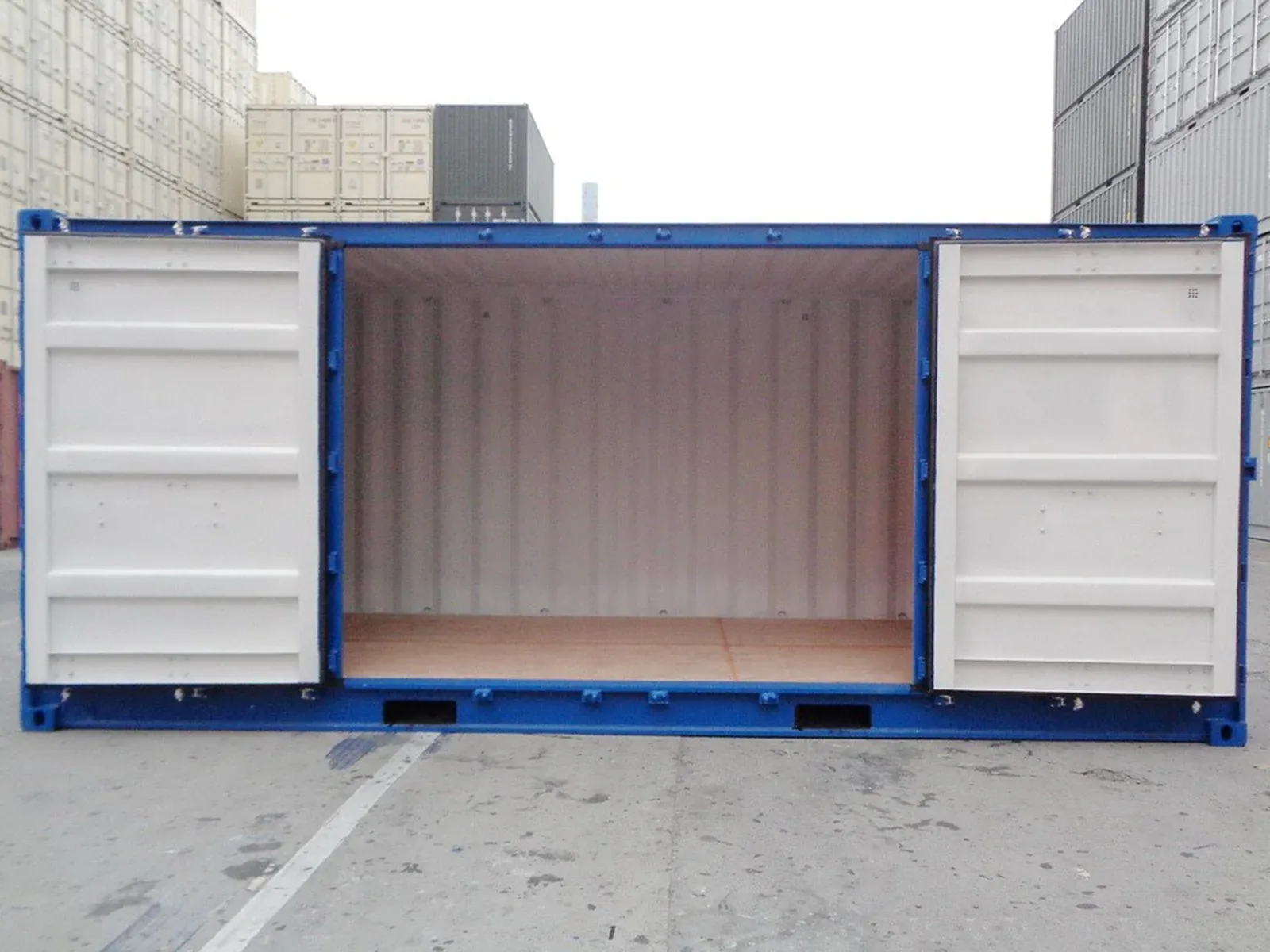

20ft High Cube One-Trip Open Side Container — Blue — New
Full lateral access from one complete side wall. This 20ft High Cube One-Trip open side container
removes the primary loading constraint of a standard end-door unit — the full 20ft side wall opens completely, allowing forklift, crane, and wide-load access along the entire container length simultaneously.
The High Cube profile adds 300mm of interior clearance over a standard 20ft container — suits tall pallets, oversized equipment, racking systems, and any application where both height and lateral access are critical.
Built new, shipped to Australia once, and never previously loaded. The interior is clean, residue-free, and ready for immediate use or fit-out on delivery.
20ft High Cube Open Side Container Dimensions
| Measurement | Metric | Imperial |
|---|---|---|
| External Length | 6,058 mm | 20′ |
| External Width | 2,438 mm | 8′ |
| External Height | 2,896 mm | 9’6″ |
| Internal Length | 5,898 mm | 19’4″ |
| Internal Width | 2,352 mm | 7’8″ |
| Internal Height | 2,698 mm | 8’10” |
| End Door Opening Width | 2,340 mm | 7’8″ |
| End Door Opening Height | 2,585 mm | 8’5″ |
| Side Opening Width | ~5,500 mm | ~18′ |
| Side Opening Height | ~2,585 mm | ~8’5″ |
| Floor Area | 14.86 m² | 160 sq ft |
| Internal Volume | ~39 m³ | ~1,380 cu ft |
20ft High Cube Open Side Container Weight Specifications
| Measurement | Weight |
|---|---|
| Tare Weight (Empty) | 2,450 kg |
| Payload Capacity | 27,550 kg |
| Maximum Gross Weight | 30,000 kg (30 ton) |
20ft High Cube Open Side Container Specifications
Condition: One-Trip (New) — Never previously loaded.
| Feature | Detail |
|---|---|
| Construction | All Cor-Ten steel — rust and corrosion resistant |
| Side Access | Full-length side wall opens — ~5,500mm wide opening |
| End Doors | Hinged double doors — full-width end opening |
| Flooring | 28mm marine plywood on steel cross-members |
| Locking Bars | 2 per door — side and end doors |
| Lockbox | Factory-fitted — padlock protection on door handles |
| Forklift Pockets | 2 per side — 4 total |
| Lashing Rings | Forged steel — floor and wall mounted |
| Ventilation | 4 vents — passive airflow |
| CSC Plate | Yes — max gross weight 30 ton |
| Colour | Blue |
| ISO Standard | ISO 668 Series 1 |
Open Side vs Standard End Door — Key Difference
| Feature | Standard End Door | Open Side High Cube |
|---|---|---|
| Access Direction | End only — 2,340mm wide | Side + end — ~5,500mm wide |
| Forklift Entry Angle | Straight in — end only | Lateral — full length accessible |
| Wide Load Capability | Limited by door width | Full side wall clearance |
| Interior Height | 2,385 mm (standard) | 2,698 mm (High Cube) |
| Simultaneous Access Points | 1 — end door | 2 — side wall and end door |
20ft High Cube Open Side Container Key Features
- One-Trip condition — built new, shipped once, sold in as-new condition
- Full-length side wall opening — ~5,500mm of unobstructed lateral access
- High Cube 9’6″ exterior height — 300mm more clearance than a standard 20ft
- End doors plus side access — simultaneous loading from two directions
- All Cor-Ten steel construction — rust, corrosion, and impact resistant
- CSC plated to 30 ton maximum gross weight
- Factory-fitted lockbox — padlock protection on all door sets
- 2 locking bars per door — side and end doors secured independently
- 4 forklift pockets (2 per side) — easy repositioning and transport
- 28mm marine plywood floor — forklift-rated, moisture-resistant base
- Forged steel lashing rings — floor and wall mounted for cargo restraint
- 4 passive vents — reduces heat and condensation build-up
20ft High Cube Open Side Container Applications
Wide Load and Oversized Cargo Storage
Cargo that exceeds standard end door width loads cleanly through the full-length side opening. The High Cube profile adds vertical clearance for tall, wide, or irregularly shaped loads that cannot enter through a standard end door — handling a wider range of cargo types than any standard end-door unit.
High-Throughput Forklift Operations
Lateral forklift access allows operators to reach any pallet position along the full 5,898mm interior length without repositioning other pallets first. Simultaneous loading from the side and unloading from the end door significantly reduces handling time in high-throughput storage operations.
Retail and Pop-Up Spaces
The full side wall opening transforms this container into an open-fronted retail, display, or event space. The clean One-Trip interior and High Cube ceiling height create a professional, spacious environment without interior fit-out compromise.
Workshop and Studio Conversions
Workshops, studios, and creative spaces benefit from the full side wall opening for ventilation, light, and equipment access. This open side container is one of the most popular base units for container conversion projects requiring natural light and openable facades.
Agricultural and Bulk Storage
Load baled hay, bulk bags, and palletised goods laterally with a forklift — without the manoeuvring constraints of an end-only door. The High Cube height accommodates double-stacked bulk bags and taller agricultural storage configurations.
Why Choose a One-Trip Open Side Container?
- As-new interior — clean, odour-free, and residue-free from day one
- No maintenance on arrival — no rust treatment, floor repairs, or repainting required
- Conversion-ready — clean walls and floor, reduce fit-out preparation time
- Maximum access — side and end doors open simultaneously for full interior exposure
- Longer service life — new Corten steel outlasts used open side units
